Wednesday, December 30, 2009

2009

2009 is ending, time to look back at a productive and very interesting year.

As mentioned in earlier posts, I'm working on a software called Scodi which is currently released as version 3.4.x.
For the next version 4.0, we dumped all the old code and rebuild the whole software using new and "fancy" technologies.
Version 3.4 was a fat RCP client, version 4.0 will be a server-client application.

That said, I had the pleasure to integrate a lot of amazing frameworks and APIs into our new software.

EMF to model our business objects, Teneo and Hibernate to persist those objects.
The Spring framework to create our beans and register some of them as OSGi services, Riena to publish them for remote access.
Apache Jackrabbit to store and version some of our data.
jBPM to handle workflows (e.g. data that is being committed needs to be reviewed by certain users) and a Mylyn connector to handle those user tasks.

This November I took a look at GMF to build our Process Flow designer, the designer itself will be developed by another company.

Towards the end of this year I cleaned out our RCP client to make it RAP ready as we have a web part of our software.
The EMF based UI framework which I built last year, uses RCP and SWT per default. The framework works on the web now including databinding, field decorations and such. RAP is great and single sourcing a blessing :-).

Using all these technologies I reported about 30-40 bugs I hope to soon find more time to contribute back to the open source community. My project on sourceforge.net "workreporter" didn't get any commits this year, I was fully concentrating on Scodi.

It was a busy year and I'm looking forward to release version 4.0 in 2010.

Thursday, December 24, 2009

Override Eclipse Key Binding

A few weeks back is was struggling with an Eclipse key binding problem. I had to override the CTRL+S binding. Since I had my own "org.eclipse.ui.bindings" extension, I keept on getting conflict messages (no wonder).
So I thought I'll make a post as personal reference and maybe it helps some other developer.

This is what I did in ApplicationActionBarAdvisor.makeActions().

IBindingService bindingService = (IBindingService) window.getService(IBindingService.class);
bindingService.addBindingManagerListener(new IBindingManagerListener() {
@Override
public void bindingManagerChanged(BindingManagerEvent event) {
BindingManager manager = event.getManager();
for (Binding binding : manager.getBindings()) {
ParameterizedCommand command = binding.getParameterizedCommand();
if (command != null && ActionFactory.SAVE.getCommandId().equals(command.getId())) {
manager.removeBinding(binding);
}
}
}
});

IWorkbenchAction saveDocumentAction = ActionFactory.SAVE.create(window);
saveDocumentAction.setId("saveDocument");
saveDocumentAction.setActionDefinitionId(SAVE_DOCUMENT_COMMAND);

register(saveDocumentAction);

Monday, December 21, 2009

SWT instead of AWT packages

Today I got annoyed using eclipse code completion to add a KeyAdapter on a SWT component. Instead of adding the SWT KeyAdapter (since it's a SWT widget), eclipse suggests the AWT KeyAdapter before the SWT KeyAdapter. The result of this is that I often choose the wrong one.
Same thing with other classes like KeyListener, MouseListener...

So I was looking for a solution, eclipse should ignore the java.awt package.
I have not found a way to handle this for the whole workspace using preferences.

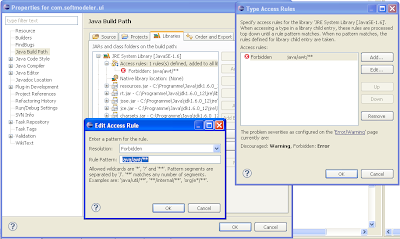

I now exclude the java.awt package in all my UI bundles from their Java Build Path.

Maybe you have had the same "trouble" and never thought about getting rid of it :-)

Saturday, September 12, 2009

Interview

At the beginning of this month, my employer (henzler informatik gmbh) sent out a newsletter to all our customers.
Part of it was an interview with myself, about the development I'm involved with and about my working day.
It's in German but if anybody is interested, here is the link:
SCODi 4P Newsletter September 2009: Interview mit Flavio Donzé

Haven't been blogging lately, I'm really busy working on this version 4 of SCODi 4P.

SCODi 4P

Sunday, July 12, 2009

jBPM 4.0 is Out!

jBPM 4.0 was released last Friday, more infos on that can be found here.

As read in the readme.html file, the two bugs I reported were fixed:

[JBPM-2319] - Finished executions are not changed to "ended" (they stay in the "active" state)
[JBPM-2340] - TaskService getTaskComments throws NullPointerException if the task is not found

Thanks guys great work!

Wednesday, July 8, 2009

Migrate oAW projects to Eclipse Galileo

As we all know, oAW moved into the Eclipse Galileo release.
More information on that here.

The new projects can be found here:
Modeling Workflow (MWE)
Model to Text (M2T)
Textual Modeling Framework (TMF)

In the project I'm working on, we use EMF to generate the model objects and oAW to generate services for the generated objects, which then are published using Eclipse Riena.
After the Galileo release, I had to update my current oAW workflow using the new workflow components and dependencies.

First I downloaded the required bundles for my target platform and IDE, you can get them from the Galileo update site.

Galileo - http://download.eclipse.org/releases/galileo/

> Modeling
  • MWE SDK
  • Xpand SDK
  • Xtext SDK
My generator plug-in now has the following dependencies:

Bundles
  • org.eclipse.emf.mwe.core;bundle-version="0.7.0",
  • org.eclipse.emf.mwe.utils;bundle-version="0.7.0",
  • org.eclipse.xtend;bundle-version="0.7.0",
  • org.eclipse.xpand;bundle-version="0.7.0"
Packages
  • com.ibm.icu.text;version="4.0.1",
  • org.antlr.runtime;version="3.0.0",
  • org.eclipse.jdt.core,
  • org.osgi.framework,
  • org.slf4j;version="1.5.6"
Done that I renamed my workflow file from generator.oaw to generator.mwe.
Now finally the changes I made on the file itself:

old generator.oaw

<?xml version="1.0"?>
<workflow>
<property file="workflow/settings.properties"/>

<!-- properties set through the generator -->
<property name="ecoreFile" value=""/>
<property name="outputLocation" value=""/>

<!-- set up EMF for standalone execution -->
<bean class="org.eclipse.mwe.emf.StandaloneSetup" >
<platformUri value=".."/>
</bean>

<!-- load basic model and store it in slot 'model' -->
<component class="org.eclipse.mwe.emf.Reader">
<uri value="${ecoreFile}" />
<modelSlot value="model" />
</component>


<!-- Service Interfaces -->
<component class="org.openarchitectureware.xpand2.Generator">
<metaModel id="mm" class="org.eclipse.m2t.type.emf.EmfRegistryMetaModel"/>
<expand value="template::Service::interface FOREACH model.eClassifiers" />
<globalVarDef name="productName" value="'${productName}'"/>
<globalVarDef name="serviceInterfacePackage" value="'${serviceInterfacePackage}'"/>
<outlet path="${outputLocation}${serviceInterfaceSrc}" >
<postprocessor class="org.openarchitectureware.xpand2.output.JavaBeautifier" />
</outlet>
</component>

<!-- Service Objects -->
<component class="org.openarchitectureware.xpand2.Generator">
<metaModel id="mm" class="org.eclipse.m2t.type.emf.EmfRegistryMetaModel"/>
<expand value="template::Service::javaClass FOREACH model.eClassifiers" />
<globalVarDef name="productName" value="'${productName}'"/>
<globalVarDef name="serviceInternalPackage" value="'${serviceInternalPackage}'"/>
<globalVarDef name="serviceInterfacePackage" value="'${serviceInterfacePackage}'"/>
<outlet path="${outputLocation}${serviceInternalSrc}">
<postprocessor class="org.openarchitectureware.xpand2.output.JavaBeautifier" />
</outlet>
</component>

<!-- Service Properties File -->
<component class="org.openarchitectureware.xpand2.Generator">
<metaModel id="mm" class="org.eclipse.m2t.type.emf.EmfRegistryMetaModel"/>
<expand value="template::Service::properties FOR model" />
<globalVarDef name="serviceInterfacePackage" value="'${serviceInterfacePackage}'"/>
<globalVarDef name="serviceInternalPackage" value="'${serviceInternalPackage}'"/>
<outlet path="${outputLocation}${serviceInternal}/META-INF/spring/">
<postprocessor class="com.softmodeler.generator.postprocessor.XmlBeautifier" />
</outlet>
</component>

<!-- Test Cases -->
<component class="org.openarchitectureware.xpand2.Generator">
<metaModel id="mm" class="org.eclipse.m2t.type.emf.EmfRegistryMetaModel"/>
<expand value="template::Test::javaClass FOREACH model.eClassifiers" />
<globalVarDef name="productName" value="'${productName}'"/>
<globalVarDef name="serviceInterfacePackage" value="'${serviceInterfacePackage}'"/>
<globalVarDef name="testPackage" value="'${testPackage}'"/>
<outlet path="${outputLocation}${testSrc}">
<postprocessor class="org.openarchitectureware.xpand2.output.JavaBeautifier" />
</outlet>
</component>

<!-- All Tests Suite -->
<component class="org.openarchitectureware.xpand2.Generator">
<metaModel id="mm" class="org.eclipse.m2t.type.emf.EmfRegistryMetaModel"/>
<expand value="template::Test::allTests FOR model" />
<globalVarDef name="testPackage" value="'${testPackage}'"/>
<globalVarDef name="productName" value="'${productName}'"/>
<outlet path="${outputLocation}${testSrc}">
<postprocessor class="org.openarchitectureware.xpand2.output.JavaBeautifier" />
</outlet>
</component>
</workflow>




new generator.mwe

<?xml version="1.0"?>
<workflow>
<property file="workflow/settings.properties"/>

<!-- properties set through the generator -->
<property name="ecoreFile" value=""/>
<property name="outputLocation" value=""/>

<!-- set up EMF for standalone execution -->
<bean class="org.eclipse.emf.mwe.utils.StandaloneSetup" >
<platformUri value=".."/>
</bean>

<!-- load model and store it in slot 'model' -->
<component class="org.eclipse.emf.mwe.utils.Reader" uri="${ecoreFile}">
<modelSlot value="model" />
</component>

<!-- first do some cleanup -->
<component class="org.eclipse.emf.mwe.utils.DirectoryCleaner" directory="${outputLocation}${serviceInterfaceSrc}" />
<component class="org.eclipse.emf.mwe.utils.DirectoryCleaner" directory="${outputLocation}${serviceInternalSrc}" />
<component class="org.eclipse.emf.mwe.utils.DirectoryCleaner" directory="${outputLocation}${serviceInternal}" />
<component class="org.eclipse.emf.mwe.utils.DirectoryCleaner" directory="${outputLocation}${testSrc}" />

<!-- Service Interfaces -->
<component class="org.eclipse.xpand2.Generator">
<metaModel id="mm" class="org.eclipse.xtend.typesystem.emf.EmfRegistryMetaModel"/>
<expand value="template::Service::interface FOREACH model.eClassifiers" />
<globalVarDef name="productName" value="'${productName}'"/>
<globalVarDef name="serviceInterfacePackage" value="'${serviceInterfacePackage}'"/>
<outlet path="${outputLocation}${serviceInterfaceSrc}" >
<postprocessor class="org.eclipse.xpand2.output.JavaBeautifier" />
</outlet>
</component>

<!-- Service Objects -->
<component class="org.eclipse.xpand2.Generator">
<metaModel id="mm" class="org.eclipse.xtend.typesystem.emf.EmfRegistryMetaModel"/>
<expand value="template::Service::javaClass FOREACH model.eClassifiers" />
<globalVarDef name="productName" value="'${productName}'"/>
<globalVarDef name="serviceInternalPackage" value="'${serviceInternalPackage}'"/>
<globalVarDef name="serviceInterfacePackage" value="'${serviceInterfacePackage}'"/>
<outlet path="${outputLocation}${serviceInternalSrc}">
<postprocessor class="org.eclipse.xpand2.output.JavaBeautifier" />
</outlet>
</component>

<!-- Service Properties File -->
<component class="org.eclipse.xpand2.Generator">
<metaModel id="mm" class="org.eclipse.xtend.typesystem.emf.EmfRegistryMetaModel"/>
<expand value="template::Service::properties FOR model" />
<globalVarDef name="serviceInterfacePackage" value="'${serviceInterfacePackage}'"/>
<globalVarDef name="serviceInternalPackage" value="'${serviceInternalPackage}'"/>
<outlet path="${outputLocation}${serviceInternal}/META-INF/spring/">
<postprocessor class="com.softmodeler.generator.postprocessor.XmlBeautifier" />
</outlet>
</component>

<!-- Test Cases -->
<component class="org.eclipse.xpand2.Generator">
<metaModel id="mm" class="org.eclipse.xtend.typesystem.emf.EmfRegistryMetaModel"/>
<expand value="template::Test::javaClass FOREACH model.eClassifiers" />
<globalVarDef name="productName" value="'${productName}'"/>
<globalVarDef name="serviceInterfacePackage" value="'${serviceInterfacePackage}'"/>
<globalVarDef name="testPackage" value="'${testPackage}'"/>
<outlet path="${outputLocation}${testSrc}">
<postprocessor class="org.eclipse.xpand2.output.JavaBeautifier" />
</outlet>
</component>

<!-- All Tests Suite -->
<component class="org.eclipse.xpand2.Generator">
<metaModel id="mm" class="org.eclipse.xtend.typesystem.emf.EmfRegistryMetaModel"/>
<expand value="template::Test::allTests FOR model" />
<globalVarDef name="testPackage" value="'${testPackage}'"/>
<globalVarDef name="productName" value="'${productName}'"/>
<outlet path="${outputLocation}${testSrc}">
<postprocessor class="org.eclipse.xpand2.output.JavaBeautifier" />
</outlet>
</component>
</workflow>



Basically only the namespace of the component classes changed.

Ending the whole story I have to say that I launch the workflow in my application using the org.eclipse.emf.mwe.core.WorkflowRunner.run(...) which works fine.
If I launch the workflow by itself "Run As -> MWE Workflow" I get an strange
"java.lang.ClassNotFoundException: org.eclipse.jface.text.BadLocationException" Exception, strange because I don't get why there should be an dependency on jface.

Friday, May 22, 2009

Jackrabbit/JCR Versioning FAQ

There is not a lot of documentation about Jackrabbit/JCR versioning around. So I thought I could publish a little FAQ about JCR versioning.


How do I make a Node versionable?
node.addMixin(JcrConstants.MIX_VERSIONABLE);

How to get the current Version of a Node?
node.getBaseVersion();

How do I increment the minor version of a Node?
node.checkout();
node.setProperty("title", new StringValue("test"));
getSession().save();
node.checkin();


How do I increment the major version of a Node?
You can't, simple as that.
http://osdir.com/ml/apache.jackrabbit.devel/2005-10/msg00417.html

How to restore a node?
node.checkout();
node.setProperty("title", new StringValue("test 2"));
getSession().save();
Version lastVersion = node.checkin();

node.checkout();
node.setProperty("title", new StringValue("test 3"));
getSession().save();
node.checkin();

System.out.println("CURRENT: " + node.getProperty("title").getValue().getString());
node.restore(lastVersion, true);
System.out.println("RESTORED: " + node.getProperty("title").getValue().getString());

The output will be:
CURRENT: test 3
RESTORED: test 2

How do I iterate over all versions of a Node?
VersionIterator i = node.getVersionHistory().getAllVersions();
i.skip(1); // important, otherwise the currentNode will fail to read the 'title' property
while (i.hasNext()) {
Version v = i.nextVersion();
NodeIterator nodeIterator = v.getNodes();
while (nodeIterator.hasNext()) {
Node currentNode = nodeIterator.nextNode();
System.out.println("Version: " + v.getName());
System.out.println(currentNode.getProperty("title").getValue().getString());
}
}

Do I have to add JcrConstants.MIX_VERSIONABLE to my subnodes?
No, changed subnodes are correctly stored under the version of the versionable Node.

Node node = root.addNode(name);
node.addMixin(JcrConstants.MIX_VERSIONABLE);
node.setProperty("title", new StringValue("test 1"));
Node subnode = node.addNode("subnode");
subnode.setProperty("descr", "this is a description");
getSession().save();
node.checkin();

node.checkout();
subnode = node.getNode("subnode");
subnode.setProperty("descr", "this is a NEW description");

node.setProperty("title", new StringValue("test 2"));
getSession().save();
node.checkin();

VersionIterator i = node.getVersionHistory().getAllVersions();
i.skip(1);
while (i.hasNext()) {
Version v = i.nextVersion();
NodeIterator nodeIterator = v.getNodes();
while (nodeIterator.hasNext()) {
Node currentNode = nodeIterator.nextNode();
System.out.println("Version: " + v.getName());
System.out.println(currentNode.getProperty("title").getValue().getString());
if (currentNode.hasNodes()) {
for (NodeIterator childs = currentNode.getNodes(); childs.hasNext();) {
Node child = childs.nextNode();
System.out.println("Description: " + child.getProperty("descr").getValue().getString());
}
}
}
}


OUTPUT:
Version: 1.0
test 1
Description: this is a description
Version: 1.1
test 2
Description: this is a NEW description

How can I export a Node and all it's Versions?
That's not possible.

If I delete a Node will it's history be deleted as well?
No you have to iterate over the versions and call VersionHistory.removeVersion(String versionName);

Usefull links:
http://www.onjava.com/pub/a/onjava/2006/10/04/what-is-java-content-repository.html?page=1
http://jcp.org/en/jsr/detail?id=170

Wednesday, May 13, 2009

jBPM Deploy Problem "no start activity in process"

I had a jBPM workflow engine running in my OSGi server environment.

Then I updated from 4.0.0 Beta1 to 4.0.0 Beta2. Well there are quite a few changes. The "exclusive" tag turned into "decision" and yeah subprocesses are supported now!
Check the readme.html in your jBPM directory for more details.

Anyway why I write this blog entry is this little bastard. After the update I kept getting the following error message: error: no start activity in process

After a little debugging I found the source of the problem. In your *.jpdl.xml file change
<process name="..." xmlns="http://jbpm.org/4/jpdl">
to
<process name="..." xmlns="http://jbpm.org/4.0/jpdl">

Problem solved.

Monday, March 16, 2009

Use EMF and Riena

EMF, Teneo and Riena are great Eclipse projects. Use EMF to model your business objects and generate the Java code, use Teneo to persist through Hibernate and Riena to transfer your objects to the Eclipse RCP client and back. Isn't that sexy!

Nevertheless As I tried to use that setup, I ran into a few problems.
  • Transferring a 0...* reference causes an Exception: java.util.ArrayList ([...]) cannot be assigned to org.eclipse.emf.common.util.EList
  • Registered Adapters (EObjectImpl:eAdapters) can not be passed over the wire and causes Exception
  • In some cases I had trouble transferring the EObjectImpl:eProperties attribute
The way I figured to solve those issues, is the AbstractSerializerFactory.

Through extension points I can register my own EObjectSerializerFactory which uses my Deserialiser/Serializer for all EObjects.
My classes need to be in a "common" plug-in which is active on the server and client.
Both the EObjectSerializer and EObjectDeserializer are based on the JavaSerializer/JavaDeserializer provided by Caucho.

Basiclly all I do, is serializing the content of the EStructuralFeatures instead of serializing the Java fields.
So this way eFlags, eAdapters, eContainer, eContainerFeatureID and eProperties (EObjectImpl fields) are not passed over the wire.
I my case this works since I don't need the eContainer on the server.

Here the classes, maybe they help you to use the same combination:
EObjectSerializerFactory.java


/*******************************************************************************
* $URL: $
*
* Copyright (c) 2007 henzler informatik gmbh, CH-4106 Therwil
*******************************************************************************/
package com.softmodeler.service.communication;

import java.util.HashMap;
import java.util.Map;

import org.eclipse.emf.ecore.EClass;
import org.eclipse.emf.ecore.EClassifier;
import org.eclipse.emf.ecore.EObject;
import org.eclipse.emf.ecore.EPackage;

import com.caucho.hessian.io.AbstractSerializerFactory;
import com.caucho.hessian.io.Deserializer;
import com.caucho.hessian.io.HessianProtocolException;
import com.caucho.hessian.io.Serializer;

/**
* EObjectSerializerFactory, provides a serializer and deserializer for EObjects
*
* @see EObjectSerializer
* @see EObjectDeserializer
* @author created by Author: fdo, last update by $Author: fdo $
* @version $Revision: 1236 $, $Date: 2009-03-03 22:51:32 +0100 (Di, 03 Mrz 2009) $
*/
public class EObjectSerializerFactory extends AbstractSerializerFactory {
/** class name suffix for implemented EClassifiers */
private static final String CLASS_SUFFIX = "Impl"; //$NON-NLS-1$
/** packages that should be excluded from reading */
private static final String[] EXCLUDE_PACKAGE_NS_URI = new String[] { "http://www.eclipse.org/emf/2002/Ecore" }; //$NON-NLS-1$

/** internal cache of all EClassifiers existing in the system, ClassifierName=>EClassifier */
private Map allClassifiers = null;

/**
* Returns a map with all relevant EClassifiers
*
* @return map ClassifierName=>EClassifier
*/
private Map getAllClassifiers() {
if (allClassifiers == null) {
allClassifiers = new HashMap();

// iterate the EPackages and place all classifiers in the allClassifiers map
for (Object value : EPackage.Registry.INSTANCE.values()) {
if (value instanceof EPackage) {
EPackage ePackage = (EPackage) value;
if (isValidPackage(ePackage.getNsURI())) {
for (EClassifier eClassifier : ePackage.getEClassifiers()) {
allClassifiers.put(eClassifier.getName(), eClassifier);
}
}
}
}
}
return allClassifiers;
}

/**
* Returns true if the package is valid (not in the EXCLUDE_PACKAGE_NS_URI list)
*
* @param nsURI the package NameSpace URI
* @return true if valid
*/
private boolean isValidPackage(String nsURI) {
for (String excludePackage : EXCLUDE_PACKAGE_NS_URI) {
if (excludePackage.equals(nsURI)) {
return false;
}
}
return true;
}

/**
* Returns the EClassifier for the passed Class
*
* @param cl
* @return returns null if the class is not an EObject or not found in the EPackages
*/
@SuppressWarnings("unchecked")
private EClass getClassifier(Class cl) {
if (EObject.class.isAssignableFrom(cl)) {
String name = cl.getSimpleName();
if (name.endsWith(CLASS_SUFFIX)) {
EClassifier classifier = getAllClassifiers().get(name.substring(0, name.indexOf(CLASS_SUFFIX)));
if (classifier instanceof EClass) {
return (EClass) classifier;
}
}
}
return null;
}

@SuppressWarnings("unchecked")
@Override
public Deserializer getDeserializer(Class cl) throws HessianProtocolException {
EClass classifier = getClassifier(cl);
if (classifier != null) {
return new EObjectDeserializer(classifier);
}
return null;
}

@SuppressWarnings("unchecked")
@Override
public Serializer getSerializer(Class cl) throws HessianProtocolException {
EClass classifier = getClassifier(cl);
if (classifier != null) {
return new EObjectSerializer(classifier);
}
return null;
}
}




EObjectSerializer.java


/*******************************************************************************
* $URL: $
*
* Copyright (c) 2007 henzler informatik gmbh, CH-4106 Therwil
*******************************************************************************/
package com.softmodeler.service.communication;

import java.io.IOException;
import java.util.ArrayList;
import java.util.List;
import java.util.logging.Level;

import org.eclipse.emf.ecore.EClass;
import org.eclipse.emf.ecore.EClassifier;
import org.eclipse.emf.ecore.EObject;
import org.eclipse.emf.ecore.EStructuralFeature;
import org.eclipse.emf.ecore.impl.EObjectImpl;

import com.caucho.hessian.io.AbstractHessianOutput;
import com.caucho.hessian.io.AbstractSerializer;
import com.caucho.hessian.io.JavaSerializer;

/**
* Serializes EObjects, this class is based on the {@link JavaSerializer} instead of working with java fields,
* {@link EStructuralFeature} are used to serialize the 'data' values of the {@link EObject}.

* Java fields of the {@link EObjectImpl}; eAdapters, eFlags, eContainer, eContainerFeatureID and eProperties are
* ignored
*
* @see JavaSerializer
* @author created by Author: fdo, last update by $Author: fdo $
* @version $Revision: 1151 $, $Date: 2009-02-25 22:47:19 +0100 (Mi, 25 Feb 2009) $
*/
public class EObjectSerializer extends AbstractSerializer {
private List fieldSerializers;
private List fields;

/**
* constructor
*
* @param classifier
*/
@SuppressWarnings("unchecked")
public EObjectSerializer(EClass classifier) {
fields = classifier.getEAllStructuralFeatures();
fieldSerializers = new ArrayList();

for (EStructuralFeature feature : fields) {
if (!feature.isMany()) {
EClassifier eDataType = feature.getEType();
Class type = eDataType.getInstanceClass();
fieldSerializers.add(getFieldSerializer(type));
} else {
fieldSerializers.add(ListFieldSerializer.SER);
}
}
}

@SuppressWarnings("unchecked")
@Override
public void writeObject(Object obj, AbstractHessianOutput out) throws IOException {
if (out.addRef(obj)) {
return;
}

Class cl = obj.getClass();

int ref = out.writeObjectBegin(cl.getName());

if (ref < -1) { writeObject10((EObject) obj, out); } else { if (ref == -1) { writeDefinition20(out); out.writeObjectBegin(cl.getName()); } writeInstance((EObject) obj, out); } } private void writeObject10(EObject obj, AbstractHessianOutput out) throws IOException { for (int i = 0; i < feature =" fields.get(i);" i =" 0;" feature =" fields.get(i);" ser =" new" value =" null;" value =" obj.eGet(feature);" ser =" new" value =" false;" value =" (Boolean)" ser =" new" value =" 0;" value =" (Integer)" ser =" new" value =" 0;" value =" (Long)" ser =" new" value =" 0;" value =" (Double)" ser =" new" value =" null;" value =" (String)" ser =" new" value =" null;" objvalue =" (List)" value =" new">



EObjectDeserializer.java


/*******************************************************************************
* $URL: $
*
* Copyright (c) 2007 henzler informatik gmbh, CH-4106 Therwil
*******************************************************************************/
package com.softmodeler.service.communication;

import java.io.IOException;
import java.util.HashMap;
import java.util.List;
import java.util.Map;

import org.eclipse.emf.ecore.EClass;
import org.eclipse.emf.ecore.EClassifier;
import org.eclipse.emf.ecore.EObject;
import org.eclipse.emf.ecore.EStructuralFeature;
import org.eclipse.emf.ecore.impl.EObjectImpl;
import org.eclipse.emf.ecore.util.EcoreUtil;

import com.caucho.hessian.io.AbstractHessianInput;
import com.caucho.hessian.io.AbstractMapDeserializer;
import com.caucho.hessian.io.HessianFieldException;
import com.caucho.hessian.io.IOExceptionWrapper;
import com.caucho.hessian.io.JavaDeserializer;

/**
* Deserializes EObjects, this class is based on the {@link JavaDeserializer} instead of working with java fields,
* {@link EStructuralFeature} are used to deserialize the 'data' values of the {@link EObject}.

* Java fields of the {@link EObjectImpl}; eAdapters, eFlags, eContainer, eContainerFeatureID and eProperties are
* ignored
*
* @see JavaDeserializer
* @author created by Author: fdo, last update by $Author: fdo $
* @version $Revision: 1236 $, $Date: 2009-03-03 22:51:32 +0100 (Di, 03 Mrz 2009) $
*/
public class EObjectDeserializer extends AbstractMapDeserializer {
private Map fieldMap;
private EClass classifier;

/**
* constructor
*
* @param classifier
*/
public EObjectDeserializer(EClass classifier) {
this.classifier = classifier;
fieldMap = getFieldMap(classifier);
}

@SuppressWarnings("unchecked")
@Override
public Class getType() {
return classifier.getInstanceClass();
}

@Override
public Object readMap(AbstractHessianInput in) throws IOException {
try {
EObject obj = instantiate();

return readMap(in, obj);
} catch (IOException e) {
throw e;
} catch (RuntimeException e) {
throw e;
} catch (Exception e) {
throw new IOExceptionWrapper(classifier.getName() + ":" + e.getMessage(), e); //$NON-NLS-1$
}
}

@Override
public Object readObject(AbstractHessianInput in, String[] fieldNames) throws IOException {
try {
Object obj = instantiate();
return readObject(in, (EObject) obj, fieldNames);
} catch (IOException e) {
throw e;
} catch (RuntimeException e) {
throw e;
} catch (Exception e) {
throw new IOExceptionWrapper(classifier.getName() + ":" + e.getMessage(), e); //$NON-NLS-1$
}
}

public Object readMap(AbstractHessianInput in, EObject obj) throws IOException {
try {
int ref = in.addRef(obj);

while (!in.isEnd()) {
Object key = in.readObject();

FieldDeserializer deser = fieldMap.get(key);

if (deser != null) {
deser.deserialize(in, obj);
} else {
in.readObject();
}
}

in.readMapEnd();

in.setRef(ref, obj);
return obj;
} catch (IOException e) {
throw e;
} catch (Exception e) {
throw new IOExceptionWrapper(e);
}
}

public Object readObject(AbstractHessianInput in, EObject obj, String[] fieldNames) throws IOException {
try {
int ref = in.addRef(obj);

for (String name : fieldNames) {
FieldDeserializer deser = fieldMap.get(name);

if (deser != null) {
deser.deserialize(in, obj);
} else {
in.readObject();
}
}

in.setRef(ref, obj);
return obj;
} catch (IOException e) {
throw e;
} catch (Exception e) {
throw new IOExceptionWrapper(obj.getClass().getName() + ":" + e, e); //$NON-NLS-1$
}
}

/**
* create an instance of the passed classifier
*
* @return
* @throws Exception
*/
protected EObject instantiate() throws Exception {
return EcoreUtil.create(classifier);
}

/**
* Creates a map featureName=>FieldDeserializer.
*/
@SuppressWarnings("unchecked")
protected Map getFieldMap(EClass classifier) {
Map fieldMap = new HashMap();

for (EStructuralFeature feature : classifier.getEAllStructuralFeatures()) {
if (feature.isTransient() || fieldMap.containsKey(feature.getName())) {
continue;
}
FieldDeserializer deser;

EClassifier eDataType = feature.getEType();
Class type = eDataType.getInstanceClass();

if (String.class.equals(type)) {
deser = new StringFieldDeserializer(feature);
} else if (byte.class.equals(type)) {
deser = new ByteFieldDeserializer(feature);
} else if (short.class.equals(type)) {
deser = new ShortFieldDeserializer(feature);
} else if (int.class.equals(type)) {
deser = new IntFieldDeserializer(feature);
} else if (long.class.equals(type)) {
deser = new LongFieldDeserializer(feature);
} else if (float.class.equals(type)) {
deser = new FloatFieldDeserializer(feature);
} else if (double.class.equals(type)) {
deser = new DoubleFieldDeserializer(feature);
} else if (boolean.class.equals(type)) {
deser = new BooleanFieldDeserializer(feature);
} else if (feature.isMany()) {
deser = new EListDeserializer(feature);
} else {
deser = new ObjectFieldDeserializer(feature);
}

fieldMap.put(feature.getName(), deser);
}
return fieldMap;
}

abstract static class FieldDeserializer {
protected EStructuralFeature feature;

public FieldDeserializer(EStructuralFeature feature) {
this.feature = feature;
}

abstract void deserialize(AbstractHessianInput in, EObject obj) throws IOException;

}

static class EListDeserializer extends FieldDeserializer {

EListDeserializer(EStructuralFeature feature) {
super(feature);
}

@SuppressWarnings("unchecked")
@Override
void deserialize(AbstractHessianInput in, EObject obj) throws IOException {
List value = null;

try {
value = (List) in.readObject(List.class);
if (value.size() > 0) {
obj.eSet(feature, value);
}
} catch (Exception e) {
logDeserializeError(feature, obj, value, e);
}
}
}

static class ObjectFieldDeserializer extends FieldDeserializer {

ObjectFieldDeserializer(EStructuralFeature feature) {
super(feature);
}

@Override
void deserialize(AbstractHessianInput in, EObject obj) throws IOException {
Object value = null;

try {
value = in.readObject(feature.getEType().getInstanceClass());

if (value != null) {
obj.eSet(feature, value);
}
} catch (Exception e) {
logDeserializeError(feature, obj, value, e);
}
}
}

static class BooleanFieldDeserializer extends FieldDeserializer {
BooleanFieldDeserializer(EStructuralFeature feature) {
super(feature);
}

@Override
void deserialize(AbstractHessianInput in, EObject obj) throws IOException {
boolean value = false;

try {
value = in.readBoolean();

obj.eSet(feature, value);
} catch (Exception e) {
logDeserializeError(feature, obj, value, e);
}
}
}

static class ByteFieldDeserializer extends FieldDeserializer {
ByteFieldDeserializer(EStructuralFeature feature) {
super(feature);
}

@Override
void deserialize(AbstractHessianInput in, EObject obj) throws IOException {
int value = 0;

try {
value = in.readInt();

obj.eSet(feature, value);
} catch (Exception e) {
logDeserializeError(feature, obj, value, e);
}
}
}

static class ShortFieldDeserializer extends FieldDeserializer {
ShortFieldDeserializer(EStructuralFeature feature) {
super(feature);
}

@Override
void deserialize(AbstractHessianInput in, EObject obj) throws IOException {
int value = 0;

try {
value = in.readInt();

obj.eSet(feature, value);
} catch (Exception e) {
logDeserializeError(feature, obj, value, e);
}
}
}

static class IntFieldDeserializer extends FieldDeserializer {
IntFieldDeserializer(EStructuralFeature feature) {
super(feature);
}

@Override
void deserialize(AbstractHessianInput in, EObject obj) throws IOException {
int value = 0;

try {
value = in.readInt();

obj.eSet(feature, value);
} catch (Exception e) {
logDeserializeError(feature, obj, value, e);
}
}
}

static class LongFieldDeserializer extends FieldDeserializer {
LongFieldDeserializer(EStructuralFeature feature) {
super(feature);
}

@Override
void deserialize(AbstractHessianInput in, EObject obj) throws IOException {
long value = 0;

try {
value = in.readLong();

obj.eSet(feature, value);
} catch (Exception e) {
logDeserializeError(feature, obj, value, e);
}
}
}

static class FloatFieldDeserializer extends FieldDeserializer {
FloatFieldDeserializer(EStructuralFeature feature) {
super(feature);
}

@Override
void deserialize(AbstractHessianInput in, EObject obj) throws IOException {
double value = 0;

try {
value = in.readDouble();

obj.eSet(feature, value);
} catch (Exception e) {
logDeserializeError(feature, obj, value, e);
}
}
}

static class DoubleFieldDeserializer extends FieldDeserializer {
DoubleFieldDeserializer(EStructuralFeature feature) {
super(feature);
}

@Override
void deserialize(AbstractHessianInput in, EObject obj) throws IOException {
double value = 0;

try {
value = in.readDouble();

obj.eSet(feature, value);
} catch (Exception e) {
logDeserializeError(feature, obj, value, e);
}
}
}

static class StringFieldDeserializer extends FieldDeserializer {
StringFieldDeserializer(EStructuralFeature feature) {
super(feature);
}

@Override
void deserialize(AbstractHessianInput in, EObject obj) throws IOException {
String value = null;

try {
value = in.readString();

obj.eSet(feature, value);
} catch (Exception e) {
logDeserializeError(feature, obj, value, e);
}
}
}

static void logDeserializeError(EStructuralFeature feature, Object obj, Object value, Throwable e)
throws IOException {
String fieldName = (feature.getContainerClass().getName() + "." + feature.getName()); //$NON-NLS-1$

if (e instanceof HessianFieldException) {
throw (HessianFieldException) e;
} else if (e instanceof IOException) {
throw new HessianFieldException(fieldName + ": " + e.getMessage(), e); //$NON-NLS-1$
}

if (value != null) {
throw new HessianFieldException(fieldName + ": " + value.getClass().getName() + " (" + value + ")" //$NON-NLS-1$ //$NON-NLS-2$ //$NON-NLS-3$
+ " cannot be assigned to " + feature.getEType().getName()); //$NON-NLS-1$
} else {
throw new HessianFieldException(fieldName + ": " + feature.getEType().getName() //$NON-NLS-1$
+ " cannot be assigned from null", e); //$NON-NLS-1$
}
}
}
